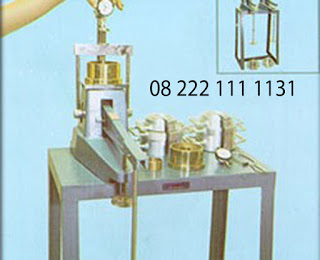

Consolidation Test Set
(item code : RS-515)
|
|
ASTM D-2435
|
AASHTO T-216
|
||
|
For determining the rate and magnitude of consolidation of soil when it is restrained laterally, loadded and drain axially.
|
|||
|
RS-516
|
Consolidation Frame
|
||
|
Consist of :
|
|||
|
RS-516.1
|
Frame
|
Cast alumunium, two test unit
|
1 Set
|
|
RS-516.2
|
Loading Set
|
Three alternative lever arm 1:9, 1:10, 1:11
|
2 Set
|
|
RS-517
|
Consolidometer
|
Brass, 50.5 mm sample dia., porous stone, loading cap.
|
2 Set
|
|
RS-518
|
Loads
|
Slotted, machined steel
|
|
|
Consist of :
|
|||
|
RS-518.1
|
Load
|
500 gr
|
4 Pcs
|
|
RS-518.2
|
Load
|
1000 gr
|
2 Pcs
|
|
RS-518.3
|
Load
|
2000 gr
|
2 Pcs
|
|
RS-518.4
|
Load
|
4000 gr
|
2 Pcs
|
|
RS-518.5
|
Load
|
8000 gr
|
2 Pcs
|
|
RS-519
|
Sample Tubes
|
Machine steel, 50.5 mm dia., galvanized, with extruder
|
1 Set
|
|
RG-135
|
Dial Indicator
|
Range 10.0 mm x 0.01 mm
|
2 Pcs
|
|
RG-840
|
Wire Saw
|
10 cm length approx.
|
1 Pc
|
Also required,
but not part of this set:
but not part of this set:
RS-450 Moisture Content Test Set
RG-521 Wash Bottle
RG-700 Stop Watch
RG-710 Vernier Caliper
RG-820 Spatula
