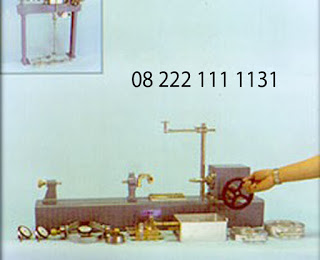

Direct Shear Test Set
(item code : RS-525)
|
|
ASTM D-3080
|
AASHTO T-236
|
||
|
For determining shearing resistance of soil sample.
|
|||
|
RS-526
|
Loading MAchine
|
||
|
Consist of :
|
|||
|
RS-526.1
|
Frame
|
Welded steel frame hand operated
|
1 Pc
|
|
RS-526.2
|
Loading Hanger
|
Machined steel, galvanized, supplied without load
|
2 Pc
|
|
RS-527
|
Shear Box
|
Cast alumunium box, 63.5 mm sample dia., porous stone, loading cap.
|
1 Set
|
|
RS-523
|
Loads
|
Slotted, machined steel, galvanized
|
|
|
Consist of :
|
|||
|
RS-523.1
|
Load
|
3167 gr weight
|
2 Pcs
|
|
RS-523.2
|
Load
|
6334 gr weight
|
1 Pc
|
|
RS-524
|
Sample Tube
|
Machine steel, 63.5 mm dia., galvanized, with extruder
|
1 Set
|
|
RG-101.1
|
Proving Ring
|
100 kg capacity
|
1 Pc
|
|
RG-135
|
Dial Indicator
|
Range 10.0 mm x 0.01 mm
|
1 Pc
|
|
RG-136
|
Dial Indicator
|
Range 20.0 mm x 0.01 mm
|
1 Pc
|
|
RG-840
|
Wire Saw
|
10 cm length approx.
|
1 Pc
|
Also required,
but not part of this set:
but not part of this set:
RS-450Moisture Content Test Set
RG-521 Wash Bottle
RG-700 Stop Watch
RG-710 Vernier Caliper
RG-820 Spatula
